Siniscalchi


Multiple Myeloma and Paget Disease with Abnormal Skull Lesions and Intracranial Hypertension

T. Caravita1, A. Siniscalchi1, E. Montinaro2, R. Bove2, M. Zaccagnini2, D. De Pascalis2, A. Morocutti2, L. Brusa2, F. Arciprete2, ML. Cupini2, A. Perrotti1, E. Palma3, S. Fratoni4, R. De Simone2, C. Iani2 and P. de Fabritiis1

1Hematology Department, 2Neurology Department, 3Radiology Department, 4Histology Department, S. Eugenio Hospital – Rome – Italy

Correspondence to: Dr. Agostina Siniscalchi, Hematology Department, S. Eugenio Hospital, Piazzale dell'Umanesimo, 10, 00100 Rome – Italy. Tel. +390651008983, Fax. +390651002390. E-mail: agostina.siniscalchi@gmail.com

Published: November 5, 2012
Received: April 25, 2012
Accepted: October 12, 2012
Meditter J Hematol Infect Dis 2012, 4(1): e2012068, DOI 10.4084/MJHID.2012.068
This article is available on PDF format at:
This is an Open Access article distributed under the terms of the Creative Commons Attribution License (http://creativecommons.org/licenses/by/2.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited


Abstract

We report a 73 years old man with a diagnosis of Paget Disease (PD) and symptomatic Multiple Myeloma (MM). Coexistence of MM and PD has rarely been described. PD mimics many of the features of bone destructive process in MM, making differential diagnosis more complicated. In addition, the presence of serious muscolo-skeletal and metabolic complications in both diseases makes management of patients difficult, worsening the prognosis.
The comparison of these two diseases has led to the characterization of a common molecular mechanism represented by the receptor activator of nuclear factor-kΒ ligand (RANKL)/Osteoprotegerin signaling pathway. The improved comprehension of these mechanisms led to the development of new pharmacologic agents (bisphosphonates, cytokines inhibitors) effective for the treatment of these bone diseases.


Case Report
A 73 years old man with a diagnosis of Paget disease (PD) made in 1978, was admitted in April 2007 to our Neurology Department for a left sided motor deficit and headache. Since the last three years he was suffering of vertebral fractures developing marked dorsal column kyphosis and, in the last three months, he suffered from asthenia, headache and noticed the progressive growth of skull tumors over the right frontal and parieto-occipital regions (Figure 1).
Relevant laboratory findings were: erythrosedimentation rate (94 mm/h), alcaline phosphatase (1500 mU/ml), 2 microglobulin (2380 gr/L), lactate (570 mU/ml), monoclonal Bence-Jones protein of l-type and a monoclonal band IgA/l-type on serum electrophoresis (Table 1). Blood cell count and serum calcium were normal.


Figure 1
. Skull lesions imaging. Presence of skull tumors over the right frontal and parieto-occipital regions.

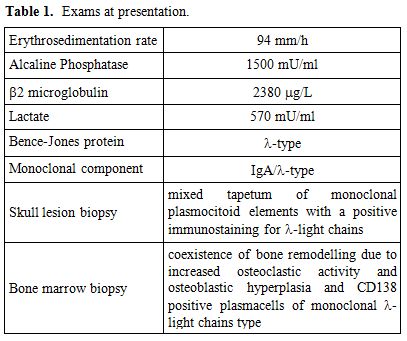

Table 1. Exams at presentation.

Osmotic therapy with infusion of 20% hyperosmolar mannitol solutions and steroid therapy promptly relieved symptoms. The patient underwent X-ray, CT scan and MRI brain scan which showed evident eso-endophytic mass lesions through the skull with contrast enhancement and brain parenchyma compression (Figure 2) along with Pagetic bone features.[1,2] Because of the poor compliance, CSF was contra-indicated. Skull lesion biopsy showed a mixed tapetum of monoclonal plasmocitoid elements with a positive immunostaining for l-light chains. Bone marrow biopsy revealed coexistence of both mature plasma cells with bone remodelling due to increased osteoclastic activity and osteoblastic hyperplasia consistent with Paget disease (PD) and CD138 positive plasmacells of monoclonal l-light chains type, consistent with multiple myeloma (MM).


Figure 2
. Cranial MRI. Evident eso-endophytic mass lesions through the skull with contrast enhancement and brain parenchima compression.

Because of the symptomatic MM, cyclophosphamide infusion at 1000 mg/daily dose, days 1, 4 plus Dexamethasone 40 mg/die days 1-4 was started after cranial radiotherapy. A rapid recovery from symptoms and disappearance of skull masses were observed. The patient survived with symptoms relief for four months.
Coexistence of MM and PD has rarely been described.[3,4] MM is a neoplastic plasma-cell disorder characterized by clonal proliferation of malignant plasma cells in the bone marrow microenvironment, monoclonal protein in the blood or urine, and associated organ dysfunction (hypercalcemia, renal insufficiency, anemia, or bone lesions). It accounts for approximately 1% of neoplastic diseases and 13% of hematologic cancers.[5] The most common symptoms on presentation are fatigue, bone pain, and infections.
Neurologic complications have been reported in 10 to 40% of patients, sometimes as first manifestation of the disease. Indication for treatment in symptomatic myeloma is defined by current guidelines.[6]
PD is a chronic disease of the skeleton featuring one or more areas of aggressive osteoclast-mediated bone resorption preceding imperfect osteoblast-mediated bone repair. The following deranged skeletal remodeling causes bone expansion and softening, becoming unnaturally deformed with pain, fracture and, rarely, neoplastic transformation. Diagnosis is characterized by elevation of serum alkaline phosphatase and characteristic X-ray features. Neurologic symptoms are not frequent. The treatment is directed toward controlling the disease activity and the management of its complications. Bisphosphonates (BPs), both oral and intravenous, have improved Paget treatment reducing and normalizing bone turnover, as measured by biochemical markers and by clinical improvement.[7] The most devastating complication is osteosarcoma in about 1% of cases.[1] PD mimics many of the features of bone destructive process in MM, making differential diagnosis more complicated. The radiographic features of PD vary with the stage of the disease: osteolysis dominate early stage as radiolucent lesions; apposition of “Paget bone” creates islands of density called “cotton wool” in the middle stage, and bone becomes homogeneously dense for the osteoblastic apposition in the late stage. In MM the characteristic lesions are generally represented  by “punched-out” 1-4 cm radiolucent lesions. Although radiography usually is sufficient for enabling the diagnosis of PD, occasionally a differential diagnosis of sclerotic or lytic metastases needs to be considered. In these cases, computerised tomography (CT) or magnetic resonance imaging (MRI) is generally diagnostic.[8] The management of patients with PD and symptomatic MM may be more difficult due to the presence of more serious complications, finally worsening the prognosis.
The osteoclast represents the crucial cell involved both in the pathogenesis of PD and bone lysis of MM. The comparison of these two diseases has led to the characterization of a common molecular mechanism represented by the receptor activator of nuclear factor-kΒ ligand (RANKL)/Osteoprotegerin signaling pathway. It normally drives the physiologic balance between bone resorption/deposition in the bone microenvironment of both diseases, disturbed by the altered trafficking of immune cells and cytokines.[9,10] The improved comprehension of these mechanisms led to the development of new pharmacologic agents (bisphosphonates, cytokines inhibitors) effective for the treatment of these bone diseases.

References

  1. Whyte MP. Paget's Disease of bone. N Engl J Med 2006 Aug 10; 355(6): 593-600 http://dx.doi.org/10.1056/NEJMcp060278  PMid:16899779
  2. Neitzschman HR. Radiology case of the month. Paget's disease with onset of increasing bone pain. Paget's disease with coexisting multiple myeloma. J La State Med Soc. 1997 Apr;149(4):109-10. PMid:9130811
  3. Carcassonne Y, Bouvenot G, Gastaut JA, Sebahoun G. The association of a myeloma and Paget's disease. Ann Med Interne. 1979;130(3):177-84.
  4. Copelan HL. Coexistence of Multiple Myeloma and Paget's Disease of bone. Calif. Med 1964 Aug; 101: 118-120 PMid:14180492 PMCid:1515466
  5. Palumbo A, Anderson K. Multiple myeloma. N Engl J Med 2011 Mar 17; 364(11): 1046-1060 http://dx.doi.org/10.1056/NEJMra1011442  PMid:21410373
  6. Anderson KC, Alsina M, Bensinger W, Biermann JS, Chanan-Khan A, Cohen AD, Devine S, Djulbegovic B, Faber Jr. EA, Gasparetto C, Huff CA, Kassim A, Medeiros BC, Meredith R, Raje N, Schriber J, Singhal S, Somlo G, tockerl-Goldstein K, Treon SP, Tricot G, Weber DM, Yahalom J and Yunus F. Multiple Myeloma J Natl Compr Canc Netw 2011;9:1146-1183
  7. GD Roodman and JJ Windle Paget disease of bone. J. Clin. Invest. 115:200–208 (2005) PMid:15690073 PMCid:546434
  8. Theodorou DJ, Theodorou SJ, Kakitsubata Y. Imaging of Paget Disease of Bone and Its Musculoskeletal Complications: Review. AJR Am J Rorntgenol. 2011; 196:s64-75 http://dx.doi.org/10.2214/AJR.10.7222 PMid:21606236
  9. Ehrlich LA, Rodman GD. The role of immune cells and inflammatory cytokines in Paget's disease and multiple myeloma. Imm Rev 2005 Dec; 208: 252-266 http://dx.doi.org/10.1111/j.0105-2896.2005.00323.x PMid:16313353
  10. Glass DA 2nd, Patel MS, Karsenty G. A new insight into the formation of osteolytic lesions in multiple myeloma. N Eng J Med 2003 Dec 25; 349(26): 2479-2480 http://dx.doi.org/10.1056/NEJMp038176 PMid:14695406
