İstanbul University Cerrahpasa Medical Faculty Pediatric Hematology and
2 İstanbul University Cerrahpasa Medical Faculty Radiology Dept.
3 İstanbul University Cerrahpasa Medical Faculty Pathology Dept.
4 Akdeniz University Medical Faculty Statistics Dept.
Received: November 9, 2018
Accepted: April 17, 2019
Mediterr J Hematol Infect Dis 2019, 11(1): e2019035 DOI 10.4084/MJHID.2019.035
| This is an Open Access article distributed
under the terms of the Creative Commons Attribution License
(https://creativecommons.org/licenses/by-nc/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
To review a single center outcome of patients with Langerhans Cell
Histiocytosis diagnosed at a tertiary referral hospital from Turkey.
In this article, we present a retrospective analysis of LCH cases diagnosed at a tertiary referral hospital in Turkey over the past 25 years. Our aim was to describe the course of the disease and evaluate the factors that have an effect over survival in our cohort.
Materials and Methods
Disease staging and organ dysfunctions were evaluated by disease history, physical examination, laboratory tests, and imaging studies. Complete blood count, liver and kidney function tests, serum electrolytes, ferritin, total bilirubin, PT, a PTT, urine osmolality were checked in all patients. Bone marrow aspirate and biopsy were performed only in multisystem patients. The radiological examination included at least chest X-ray and skeletal radiograph survey. Other further imaging modalities such as ultrasonography, computerized tomography, magnetic resonance imagining, bone scintigraphy, positron emission tomography and pulmonary function tests were performed when evaluation of the extent of disease was required.
LCH can be clinically be classified in two general groups, single system and multisystem. Risk organ involvement in the multisystem group is considered to be the most aggressive form of the disease.[4,5] While preparing the manuscript for publication, patients were retrospectively staged according to currently ongoing LCV IV trial of Histiocyte Society even though different protocols have been used for classification and treatment of these patients. According to LCH IV trial, in monosystemic (single system) form, one organ or system is involved; such as bone (either as a single bone; monosystem unifocal bone or more than one bone; monosystem multifocal bone), skin or lymph nodes. In multisystemic form two or more organs or systems are involved; either with or without risk organs (hematopoietic system involvement, spleen and liver). Different from the previous protocols, the lung is not considered as a risk organ in LCH IV trial.
Treatment included local steroid therapy, radiotherapy, chemotherapy, surgical excision of the lesion (even though it is not recommended any longer), or a combination of these modalities. Depending on the year of admission, patients were treated by DAL-HX 83 protocol[10,11,12] between 1989 and 1991, LCH-1 protocol between 1992 and 1996, LCH-II protocol between 1996 and 2004 and LCH-III protocol after 2004.
For the evaluation of response, the response criteria of LCH-1 Study were employed. Responders had a complete resolution (NAD) or continuous regression of disease; intermediate responders were patients with active disease who had either stable disease or a mixed response (a regression of disease but the appearance of new lesions in another site or organ system), and non-responders had progression of the disease. Reactivation was defined as a reappearance of disease signs or symptoms after complete disease resolution.
|Table 1. General Characteristics of patients, treatment and survival outcomes.|
Initial symptoms. At the time of diagnosis, swelling (n: 33, 41%) was the most recorded referral symptom followed by pain (n: 24, 30%) in which 21 were related to bone and 7 presented with limping gait. Skin rash or eruption was noted in 16 (20%) of the patients while polyuria and polydipsia was the presenting symptom in 7 (8.7%) of the patients.
Physical examination and organ involvement. The most frequently affected organ was bone (n: 60, 75%). In MS-RO+ group, besides risk organ infiltration, skin involvement was also statistically higher (n:14; p=0.0001) compared to the other two groups. Bone involvement was statistically high in the SS group (n: 36; p=0.01), and soft tissue involvement was statistically higher in MS-RO- group (n:10; p=0.0001). Distribution of organ involvement varied significantly by patient age. Status of patients according to age is illustrated in Table 2.
|Table 2. Status of patients in relation to age.|
Diagnosis. Among 80 patients enrolled to study, 76 (95%) had a histological diagnosis of LCH based on characteristics histological appearance of LCH lesions on hematoxylin and eosin and positive immunohistochemical staining with CD1a and/or S-100. The diagnosis was based on radiological and clinical findings in 4 (5%) patients, because of the surgical risk due to localization in the paravertebral area.
Staging. Forty-three patients (53.75%) presented with SS disease and 37 patients (46.25%) presented with multisystem disease. Distribution of risk groups varied according to the age as is shown in Table 2.
Treatment. Patients were treated according to the extent of the disease. Details of treatment regimens are illustrated in Table 3. Among 22 patients with unifocal bone lesions 16 were treated with surgical curettage/excision and the rest 6, who had involvement of weight-bearing bones, skull base, temporal bones and vertebral column, were treated with chemotherapy (n:5) and local radiotherapy (n:1). For the patients in the multisystem low-risk group (n: 20), 15 were treated with chemotherapy, and the rest 5 were treated with combination treatments. All patients in the multisystem high risk group (n: 17) were treated with systemic chemotherapy. A total of 50 patients from all groups received chemotherapy as the treatment. According to chemotherapy response on week 12, 43 patients (86%) were classified as responders; of these, 33 (66%) had NAD, and 10 (20%) had DR. Seven patients (14%) were evaluated as non-responders; of these 3 (6%) had IR and 4 (8%) had DP. Chemotherapy response was statistically worse in MS-RO+ group compared to the other two groups (p=0.007) and in patients, under 2 years of age (p=0.023) as is shown in Table 1 and 2.
|Table 3. Treatment Options according to the involvement of disease.|
Treatment response and outcome. The median follow up time was 10 years and 9 months (1 month to 25 years), 10-year overall survival (OS) rate in the entire patient cohort were 91.25 %, and EFS (event-free survival) rate was 67.5%. Seven patients died. One patient in the single system group (skin involvement) has developed reactivation of risk organ involvement during follow up and was lost due to progressive disease. Besides this patient, the rest 6 were in MS-RO+ group. 10-year OS rate was lower for patients with MS-RO+ (65%) when compared to those with, MS-RO-, and SS (100%, 97%, p value=<0.001).
Regarding the age of patients' OS rate at 10 years from diagnosis was 77% for patients younger than 2 years of age and 98% for patients older than 2 years of age (p=0.02). Bone involvement was reported in 60 patients (75%). Ten year OS rate was significantly higher in patients with bone involvement than in those with extraosseous disease site involvement (100% vs. 65%; p=<0.001). Even among patients of MS-RO+ group, presence of bone lesions was associated with better OS (%100 vs. % 40; p=0.016). Ten year OS rate was significantly higher in patients who responded to initial treatment at 12 weeks compared to those who did not (100% vs. 14%; p=<0.001) and also in patients with skin involvement as is shown in Table 4. Due to the difference in the distribution of deaths among groups, we could not perform multivariate analysis.
|Table 4. Univariate analysis of Factors Correlated With Overall Survival.|
Reactivation. Out of 80 patients, 20 (25%) experienced at least one reactivation. The first reactivation occurred 2-46 months (median: 11 mo) after the initial diagnosis. Regarding the timing, one patient (5%) reactivated during induction treatment, 4 (20%) patients reactivated during continuation treatment and 15 patients (75%) reactivated while on follow up. Among these reactivations, 4 occurred in the first year and the rest 11 afterward (2-46 months, median: 17 months after the initial diagnose). Among the patients with first reactivation, 7 patients had SS MFB, 6 patients had SS SS (single system, single side), 4 patients had MS-RO+, and 3 patients had MS-RO- disease. The most clinical pattern of reactivation was limited to the bone. Bone reactivation was observed in 16 of the 20 patients (7 patients unifocal, 4 patients multifocal bone and in 5 patients reactivation was associated with other organs' involvement). Risk organ reactivation was observed in only 3 patients (15%). Patients with reactivated disease were treated with chemotherapy (n:17), or local therapy (radiotherapy (n:1), curettage (n:1) and intralesional steroid (n:1). Five patients experienced multiple reactivations: one patient experienced 2, three patients experienced 3, and one patient experienced 4 reactivations in the follow-up; within a mean period of 17 (9-26 mo) months. The 10-year reactivation rates for SS-SS, MS-RO-, and MS-RO+ patients were 30%, 15%, and 23.5% respectively. Reactivation rate did not differ statistically according to the involved organs or risk groups. Reactivation did not affect mortality except for one patient in group SS-SS (MFB) who relapsed in follow-up with risk-organ involvement and died due to disease progression despite the combined chemotherapy protocols in 6 months. The EFS of the cohort is shown in Figure 2.
|Figure 1. Kaplan Meier analysis of overall survival for patients.|

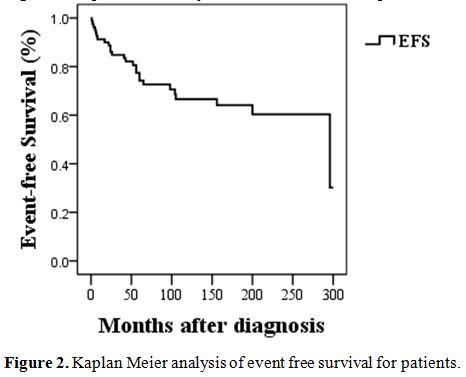

|Figure 2. Kaplan Meier analysis of event free survival for patients.|

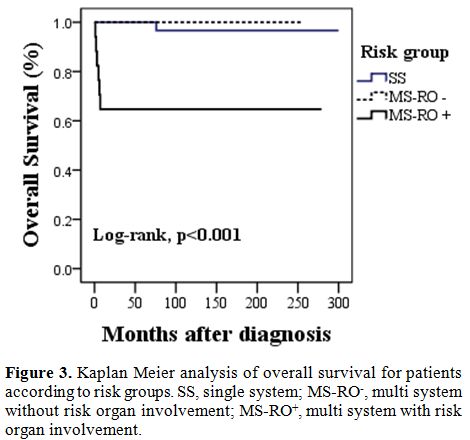

|Figure 3. Kaplan Meier analysis of overall survival for patients according to risk groups. SS, single system; MS-RO-, multi system without risk organ involvement; MS-RO+, multi system with risk organ involvement.|
The demographic features of LCH patients in our cohort were comparable with previous reports showing early onset of disease and male predominance.[14,15] The median age of our patients at diagnosis was 36 months; more than 1/3 of patients were under 2 years, and the male/female ratio was 2.3.
In concordance with previous reports, the majority of our patients presented with symptoms related to bone (71%) including swelling, pain and limping gait.[16,17,18] The most affected organs by disease in our study after bone were skin, soft tissue and liver retrospectively and which was also in line with the previously reported series in the literature.[17,18] Presence of bone lesions at diagnosis was associated with better OS in our cohort as was described in the literature before.[19,20] Even among MS-RO+ group, OS was significantly better in patients with bone disease (%100 in the presence of bone disease and 40% in the absence of bone disease; p=0.016). Even though this is in concordance with previous reports showing the favorable course of patients with bone involvement among MS-RO+ patients, in our opinion, our number of patients is too low (n:17) to contribute to this hypothesis.
In our cohort, group involvement differed according to age, while the children older than 2 years mostly presented with SS disease and bone involvement, the younger group (≤2 years of age) presented with more multisystem disease, skin and risk organ involvement. This was in concordance with previous studies in the literature.[16,17,19]
Kim et al. described "bone" as the most common site of involvement in their study among the patients between 1 to 5 years of age.[16,21] In 2012, Postini et al. reported their 40 years of experience with pediatric LCH patients. Single system unifocal bone involvement was the most observed clinical presentation in patients over 2 years of age.[20,22] In a nationwide survey from Korea, young age at diagnosis (<2 years) was associated with multisystem risk organ involvement resulting in higher mortality.
In LCH, the course of the disease is highly heterogeneous and it is related to the extent of organ involvement. In 2014, Lee at al reported the outcome of 22 years’ experience. The OS rate was significantly low in patients with risk-organ involvement. In the study by Yagci et al. where the outcome of 217 LCH patients was described OS and EFS rates were significantly worse in MS-RO+. In our study, patients with SS disease and MS-RO- had excellent survival rates. All patients except one survived in these two groups. The only patient dead was a boy who had a reactivation of risk organ involvement during follow up. Besides this patient, all the other deaths were observed in the MS-RO+. Our findings support the hypothesis that risk organ involvement is a strong negative predictor of outcome in LCH patients.
Skin involvement was observed in 25 (31%) of our cohort. Age<2 years and MS-RO+ were associated with skin involvement (p<0.001) as was shown in the literature before. Several studies revealed the presence of somatic BRAF-V600E mutation on skin biopsy.[23,24] The existence of BRAF-V600E in circulating blood has been associated with disease recurrence. In our cohort, a skin biopsy or peripheral blood were not available for analyses of BRAF-V600E mutation. However, in univariate analyses patients with skin involvement had lower EFS and OS. Due to the close association of skin disease with risk-organ involvement and the low number of patients enrolled we cannot conclude whether skin involvement is an independent predictor of poor outcome. Prospective multicenter trials are needed to determine the effect of skin involvement over the outcome in LCH patients.
There is no current standard management protocol for patients whose disease is unresponsive to frontline therapy or who present with multiple reactivations. Even though patients with single bone or low-risk multisystem reactivation respond well to second-line treatments such as 6-mercaptopurine and methotrexate, patients with risk-organ reactivation have inadequate response even to salvage protocols. Treatment of refractory LCH patients with 2CdA as monotherapy has shown a higher response rate in patients with non-risk organs involvement, but limited activity in refractory patients with risk-organ involvement. Combination of 2CdA with Cytarabine (Ara-C) as a salvage protocol has promising results. Even in the MS-RO+ group, 5 year survival rate was reported to be 85% in the phase II study by Donadeiu et al. The principal declared side effect of this treatment was severe hematologic toxicity and arising severe infection. Currently, ongoing prospective LCH-IV study is evaluating the effect of 2CdA and Ara-C combination chemotherapy for risk organ involved refractory LCH patients.[9,27] In our cohort we treated 2 of our patients with a combination of 2CdA and Ara-C; one was a girl with single system bone involvement who relapsed during maintenance therapy from multiple bones. She achieved remission with 2CdA treatment until now. The second patient was initially staged in single system group (skin involvement) but had reactivation of risk organ involvement during follow up. He died because of progressive disease despite 2CdA treatment. In our study, the number of patients was too few to report 2CdA efficiency. In the literature, some case reports are showing the efficacy of Clofarabine as monotherapy in refractory LCH patients. Rodriguez-Galindo et al. showed complete remission in 2 refractory LCH patients (both without risk organ involvement) with Clofarabine therapy who were unresponsive to 2-CdA treatment. This finding was in concordance with the recent study showing the superiority of Clofarabine treatment in non-risk organ involved refractory LCH patients.
There are also promising reports regarding the Lenalidomide plus steroid treatment in refractory patients.[31,32] The main advantage of this protocol is the feasibility of treatment at an outpatient clinic, cost-affectivity of the drug and reported limited toxicity. However, literature regarding this protocol is scarce in the pediatric population.
After the description of recurrent oncogenic mutations affecting the MAPK pathway in LCH patients, targeted therapies such as BRAF, MEK or BRAF/MEK inhibitors were reported to be useful for patients with these mutations who even were unresponsive to salvage treatments.[22,33,34] However, further studies are warranted to reveal the efficacy, safety, and long term outcome in the pediatric population for targeted therapies.
Reactivation is a common problem in the treatment of patients with LCH.[18,20,21] The total reactivation rate in our cohort was 25%. This rate is similar to the reported data.[16,20,25] Reactivations predominantly affected the bones as was shown in the literature before.[19,20] Even in the group with multifocal bone involvement or in patients with multiple reactivations, recurrence or the disease, were not associated with mortality. Only one patient with MS-RO+ reactivation died despite rescue treatment, which suggests the severity of risk organ involvement also in disease reactivation. The 5-year reactivation rates of our patients did not differ between the groups, which was contradictory to the previous reports in where higher reactivation rates were reported in the MS group. In our opinion, this is related to poor outcome in MS-RO+ group. Because most of these patients (5 of 6) could not get into remission, they died in early stages of treatment before developing any reactivation.
- Willman CL, Busque L,
Griffith BB, et al.
Langerhans'-cell histiocytosis (histiocytosis X)-a clonal proliferative
disease. N Engl J Med 1994; 331: 154-160. https://doi.org/10.1056/NEJM199407213310303
C, Basset F. An hypothesis Langerhans cell histiocytosis: the failure
of the immune system to switch from an innate to an adaptive mode.
Pediatr Blood Cancer 2004; 42: 398-400 https://doi.org/10.1002/pbc.10463
N, Potschger U, Prosch H, et al. Risk factors for diabetes insipidus in
Langerhans cell histiocytosis. Pediatr Blood Cancer 2006; 46: 228-233https://doi.org/10.1002/pbc.20425.
RD, Tatevossian RG, McNally RJ, et al. Incidence and survival of
childhood LCH in northwest England from 1954 to 1998. Pediatr Blood
Cancer 2007; 48: 555-60. https://doi.org/10.1002/pbc.20884
R, Minkov M, Astigarraga I, et al.; Euro Histio Network. Langerhans
cell histiocytosis (LCH): guidelines for diagnosis, clinical work-up,
and treatment for patients till the age of 18 years. Pediatr Blood
Cancer 2013; 60: 175-84. https://doi.org/10.1002/pbc.24367
H, Grois N, Arico M, et al; Histiocyte Society. A randomized trial of
treatment for multisystem Langerhans' cell histiocytosis. J Pediatr
2001; 138: 728-34. https://doi.org/10.1067/mpd.2001.111331
H, Grois N, Pötschger U, et al; Histiocyte Society. Improved outcome in
multisystem Langerhans cell histiocytosis is associated with therapy
intensification. Blood 2008; 111: 2556-62. https://doi.org/10.1182/blood-2007-08-106211
K, Ohga S, Morimoto A, et al. Improved outcome of refractory Langerhans
cell histiocytosis in children with hematopoietic stem cell
transplantation in Japan. Bone Marrow Transplant 2010; 45: 901-6. https://doi.org/10.1038/bmt.2009.245
International Colloborative Treatment Protocol for Children and
Adolescents with Langerhans Cell Histiocytosis. Amended protocol
version 1.3 Nov 25. 2015.
- Gadner H,
Heitger A, Grois N, et al. Treatment strategy for disseminated
Langerhans cell histiocytosis. DAL HX-83 Study Group. Med Pediatr Oncol
1994; 23: 72-80. https://doi.org/10.1002/mpo.2950230203
M, Grois N, Heitger A, et al. Treatment of multisystem Langerhans cell
histiocytosis. Results of the DAL-HX 83 and DAL-HX 90 studies. DAL-HX
Study Group. Klin Padiat 2000; 212: 139-44. https://doi.org/10.1055/s-2000-9667
Ladisch and H. Gadner. Treatment of Langerhans cell
histiocytosis--evolution and current approaches. Br J Cancer Suppl
1994; 23: 41-6.
- Ramzan M, Yadav SP.
Langerhans cell histiocytosis presenting as isolated mediastinal mass
in an infant. Indian Pediatr 2014; 51: 397-8. https://doi.org/10.1007/s13312-014-0405-0
A, Macmillan S, Murphy D, Carachi R. Langerhans cell histiocytosis: 23
years' paediatric experience highlights severe long-term sequelae.
Scott Med J 2014; 59: 149-57. https://doi.org/10.1177/0036933014542387
LT, de Oliveira BM, de Castro LP, et al. Langerhans cell histiocytosis:
37 cases in a single brazilian institution. Rev Bras Hematol Hemoter
2011; 33: 353-7. https://doi.org/10.5581/1516-8484.20110098
BE, Koh KN, Suh JK, et al; Korea Histiocytosis Working Party.Clinical
features and treatment outcomes of Langerhans cell histiocytosis: a
nationwide survey from Korea histiocytosis working party. J Pediatr
Hematol Oncol 2014; 36: 125-33. https://doi.org/10.1097/MPH.0000000000000054
B, Varan A, Cağlar M, et al. Langerhans cell histiocytosis:
retrospective analysis of 217 cases in a single center. Pediatr Hematol
Oncol 2008; 25: 399-408. https://doi.org/10.1080/08880010802107356
MS, Rahman HA, Moussa E, et al. Langerhans Cell Histiocytosis (LCH) in
Egyptian Children: Does Reactivation Affect the Outcome? Indian J
Pediatr 2016; 83: 214-9. https://doi.org/10.1007/s12098-015-1801-8
multicentre retrospective survey of Langerhans' cell histiocytosis: 348
cases observed between 1983 and 1993. The French Langerhans' Cell
Histiocytosis Study Group. Arch Dis Child 1996; 75: 17-24. https://doi.org/10.1136/adc.75.1.17
M, Astigarraga I, Braier J, et al; Histiocyte Society. Lack of bone
lesions at diagnosis is associated with inferior outcome in multisystem
langerhans cell histiocytosis of childhood. Br J Haematol 2015;169:
JW, Shin HY, Kang HJ, Kim H, et al. Clinical characteristics and
treatment outcome of Langerhans cell histiocytosis: 22 years'
experience of 154 patients at a single center. Pediatr Hematol Oncol
2014; 31: 293-302. https://doi.org/10.3109/08880018.2013.865095
AM, del Prever AB, Pagano M, et al. Langerhans cell histiocytosis: 40
years' experience. J Pediatr Hematol Oncol 2012; 34: 353-8. https://doi.org/10.1097/MPH.0b013e318257a6ea
MA, Vanden Broecke K, Vangeebergen L, et al. Diverse Cutaneous
Presentations of Langerhans Cell Histiocytosis in Children: A
Retrospective Cohort Study. Pediatr Blood Cancer 2016; 63: 486-92. https://doi.org/10.1002/pbc.25834
G, Vergilio JA, Degar BA, et al. Recurrent BRAF mutations in Langerhans
cell histiocytosis. Blood 2010; 116: 1919-23. https://doi.org/10.1182/blood-2010-04-279083
ML, Lim KP, Peters T, Price J, et al. BRAF-V600E expression in
precursor versus differentiated dendritic cells defines clinically
distinct LCH risk groups. J Exp Med 2014; 211: 669-83. https://doi.org/10.1084/jem.20130977
- Weitzman S, Braier J, Donadieu J, Egeler RM, Grois N, Ladisch S, Pötschger U, Webb D, Whitlock J, Arceci RJ. 2'-Chlorodeoxyadenosine (2-CdA) as salvage therapy for Langerhans cell histiocytosis (LCH). results of the LCH-S-98 protocol of the Histiocyte Society. Pediatr Blood Cancer 2009; 53: 1271-6. https://doi.org/10.1002/pbc.22229 PMid:19731321
C, Barkaoui MA, Thomas C, et al. Langerhans cell histiocytosis:
therapeutic strategy and outcome in a 30-year nationwide cohort of 1478
patients under 18 years of age. Br J Haematol 2016;174: 887-98. https://doi.org/10.1111/bjh.14140
J, Bernard F, van Noesel M, et al. Cladribine and cytarabine in
refractory multisystem Langerhans cell histiocytosis: results of an
international phase 2 study. Blood 2015; 126: 1415-23. https://doi.org/10.1182/blood-2015-03-635151
C, Jeng M, Khuu P, McCarville MB, Jeha S. Clofarabine in refractory
Langerhans cell histiocytosis. Pediatr Blood Cancer 2008; 51: 703-6. https://doi.org/10.1002/pbc.21668
SJ, Tran HD, Jones J, Bilgi M, Beaupin LK, Coulter D, Garrington T,
McCavit TL, Moore C, Rivera-Ortegón F, Shaffer L, Stork L, Turcotte L,
Welsh EC, Hicks MJ, McClain KL, Allen CE. Clofarabine salvage therapy
in refractory multifocal histiocytic disorders, including Langerhans
cell histiocytosis, juvenile xanthogranuloma and Rosai-Dorfman disease.
Pediatr Blood Cancer 2014; 61: 479-87. https://doi.org/10.1002/pbc.24772
R, Ramachandrakurup S, Subburaj D, Bakane A, Raj R. Excellent remission
rates with limited toxicity in relapsed/refractory Langerhans cell
histiocytosis with pulse dexamethasone and lenalidomide in children.
Pediatr Blood Cancer 2017; 64: 110-2. https://doi.org/10.1002/pbc.26199
R, Ramachandrakurup S, Balaji R, Subburaj D, Bakane A, Raj R.
Successful Treatment of Refractory Langerhans Cell Histiocytosis of the
Choroid Plexus in a Child With Pulse Dexamethasone and Lenalidomide. J
Pediatr Hematol Oncol 2017; 39: 74-8. https://doi.org/10.1097/MPH.0000000000000735
A, Sörensen J, Zimmermann SY, Schöning S, Schwabe D, Kvasnicka,
Raphaela Schwentner HM, Hutter C, and Lehrnbecher T. Vemurafenib in
Langerhans cell histiocytosis: report of a pediatric patient and review
of the literature. Oncotarget 2018; 9: 22236-40. https://doi.org/10.18632/oncotarget.25277
G, Seremet T, Fostier K, Everaert H, and Neyns B. Long-term disease
control of Langerhans cell histiocytosis using combined BRAF and MEK
inhibition. Blood Adv 2018; 2: 2156-8. https://doi.org/10.1182/bloodadvances.2018021782
