Monocyte HLA-DR Expression to Monitor Immune Response and Potential Infection Risks Following Vaso-Occlusive Crises in Patients with Sickle Cell Anemia

Romain Fort1,2,3, Guillaume Monneret,4, Elie Nader2,3, Giovanna Cannas1, Philippe Connes2,3, Fabienne Venet4 and Arnaud Hot1.

Department of Internal Medicine, Edouard Herriot University Hospital, Lyon, France.
2 LIBM EA7424 Laboratory, Equipe "Biologie Vasculaire et du Globule Rouge", Claude Bernard University, Lyon, France.
3 Excellence du Globule Rouge (LABEX GR-Ex) Laboratory, PRES Sorbonne, Paris, France.
4 Cellular Immunology Laboratory, Edouard Herriot University Hospital, Lyon, France.

Correspondence to: Correspondence to: Giovanna Cannas, M.D. Hospices Civils de Lyon, Department of Internal Medicine, Edouard Herriot University Hospital, Centre de Référence Constitutif: Syndromes Drépanocytaires Majeurs, Thalassémies et Autres Pathologies Rares du Globule Rouge et de l’Erythropoïèse; 5, place d’Arsonval 69437 Lyon cedex 03, France. Tel: +33 (0)472117412; Fax: +33 (0)472117308. E-mail:

Published: November 1, 2022
Received: August 28, 2022
Accepted: October 16, 2022
Mediterr J Hematol Infect Dis 2022, 14(1): e2022078 DOI 10.4084/MJHID.2022.078

This is an Open Access article distributed under the terms of the Creative Commons Attribution License
(, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.

To the editor

Sickle cell anemia (SCA) is a genetic disorder characterized by chronic hemolysis and vascular dysfunction.[1] Patients with SCA are at higher risk of invasive bacterial infections,[2] especially those due to encapsulated germs,[3] leading to specific recommendations for antibiotics prophylaxis and vaccinations.[4,5] The main causes of infections are attributed to splenic dysfunctions,[6] complement activation defects,[7] genetic factors, and micronutrient deficiencies.[8] Reports from the literature have also suggested a central role in immune impairment, especially during vaso-occlusive crises (VOC). In septic shock, a clinical context characterized by an initial systemic inflammatory response, the down-regulation of human leukocyte antigen-DR expression on circulating monocytes (mHLA-DR) has been demonstrated. In this setting, mHLA-DR expression is considered a pertinent marker to identify patients with an increased risk of nosocomial infections and, therefore, of deleterious outcome.[9]
The present study evaluates the mHLA-DR expression in SCA patients during and after VOC.
Eighteen homozygous (HbSS) SCA adults with VOC, seen between October 2017 and April 2018 at the Edouard Herriot University Hospital in Lyon (France), were included in this one-center prospective study. A painful episode, defined as VOC, lasted for more than four hours; the patient felt that the pain was typical of that of vaso-occlusion, no other etiology of pain could be identified by the physicians, and the patient required hospitalization to the Emergency Department to treat the pain with opioids. SCA patients with VOC were compared to a control group, including 18 SCA subjects in clinical steady-state seen in the same institution over the same period. The study was conducted following the guidelines set by the Declaration of Helsinki. All patients gave written informed consent prior to inclusion. The study was approved by the "CPP Sud-Est IV" Ethics Committees (L16-47).
Venous peripheral blood was drawn to assay mHLADR expression and lymphocyte subsets counts (T-, B-, and NK-cell) on day 0 (D0) at crisis onset and then on day 1 (D1) and between day 3 and day 7 (D3-7). In 6 of the 18 patients, mHLA-DR expression was monitored again four months (M4) after crisis recovery. In the control cohort, peripheral venous blood was harvested during medical consultation. Blood was sent on ice to the immunology laboratory within 3 hours, and then the monocyte HLA-DR expression was assessed by flow cytometry using a standardized technique. Results are expressed as the number of antibodies bound per cell (AB/C).
Mann-Whitney tests were used to compare nonparametric biological values between patients in crisis and patients in steady-state (control cohort). In contrast, the Wilcoxon test was used to compare patients in crisis at different time points. Statistical analyses were performed using SPSS (IBM Statistics) and GraphPad Prism software. All P values were two-sided and statistical significance was defined as
P < 0.05.
The baseline characteristics of the group in crisis and the control group are detailed in Table 1. Half of the patients with VOCpresented with fever (>38°C). Patients in crisis demonstrated significantly higher CRP levels (
P < 0.0001, P = 0.0001, and P = 0.0048, respectively) than patients from the control cohort. During hospitalization, acute chest syndrome (ACS) occurred in 3 patients (16.7%), and pneumonia (defined on radiological criteria) was diagnosed in 2 patients (11.1%). mHLADR expression of the control group was within the range of normal values. At the onset of VOC (D0), SCA patients had lower mHLA-DR expression than the control group (P = 0.0001). A lower level of mHLA-DR expression was maintained at D1 (P = 0.052), but the level increased by D3 (P< 0.05). mHLA-DR expressions returned to normal values compared to D0 (P< 0.05) when measured following VOC recovery (Figure 1). No significant differences were observed among the study and control groups regarding the absolute counts of total lymphocytes and lymphocyte subpopulations.

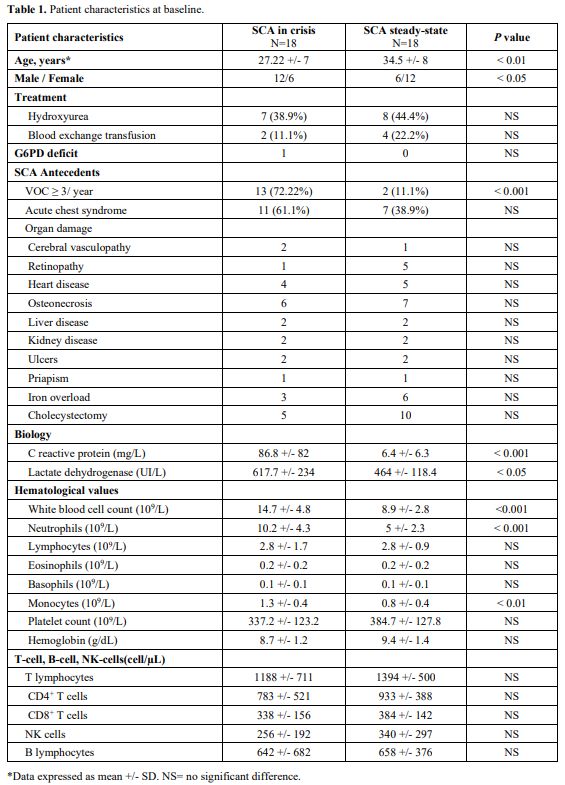

Table 1 Table 1. Patient characteristics at baseline.

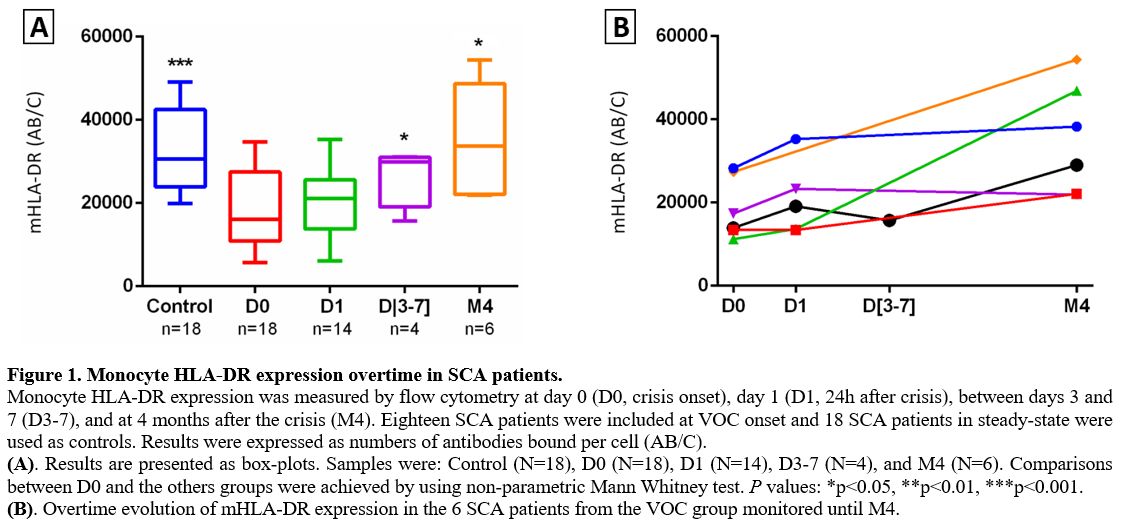

Figure 1 Figure 1. Monocyte HLA-DR expression overtime in SCA patients. Monocyte HLA-DR expression was measured by flow cytometry at day 0 (D0, crisis onset), day 1 (D1, 24h after crisis), between days 3 and 7 (D3-7), and at 4 months after the crisis (M4). Eighteen SCA patients were included at VOC onset and 18 SCA patients in steady-state were used as controls. Results were expressed as numbers of antibodies bound per cell (AB/C).
(A). Results are presented as box-plots. Samples were: Control (N=18), D0 (N=18), D1 (N=14), D3-7 (N=4), and M4 (N=6). Comparisons between D0 and the others groups were achieved by using non-parametric Mann Whitney test. P values: *p<0.05, **p<0.01, ***p<0.001.
(B). Overtime evolution of mHLA-DR expression in the 6 SCA patients from the VOC group monitored until M4.

This study is the first evaluating mHLA-DR expression in SCA patients with VOC. The results showed a significant decrease in mHLA-DR levels in patients in crisis as compared to SCA subjects in clinical steady-state. The nadir was reached at VOC onset. The mHLA-DR levels remained low for 24 hours, then increased by D3, to finally normalized by a few months. Values observed in the VOC group were similar to data previously described in trauma patients.[10] However, they remained higher than those previously observed in patients with septic shock.[11]
In SCA patients, VOC is characterized by a systemic inflammatory response, which is associated with increased levels of biological markers (CRP and leukocytosis) and cytokines (such as IL-6, IL-8, IL-17, and TNF-α).[12,13,14] Prior findings showed that circulating monocytes display an activated phenotype for VOC. The mechanism involves the activation of the endothelium.[15] In the current study, circulating monocytes from SCA patients in crisis demonstrated an altered/anergic phenotype characterized by decreased MHC class II expression. Decreased HLA-DR expression has previously been proposed as a marker of immune alterations, and experimental ex-vivo studies have shown a linear correlation with altered TNF-α production by monocytes.[16] Similarly, it has been suggested in septic shocks that the decreased mHLA-DR expression reflects the homeostatic regulation of the immune response from initial overwhelming inflammation to secondary immunosuppression.[17]
Despite limitations due to the small number of patients, our first results suggest that, following the acute injury associated with VOC, a negative immunosuppressive feedback response occurs in SCA patients to compensate for the acute inflammatory response initiated during the VOC.[13] Furthermore, our findings are supported by previous data showing that plasma concentrations of immunoregulatory cytokines, such as IL-10, TGF-β, and PGE2, are also increased in SCA patients during VOC.[14,18,19] Decreased HLA-DR expression is in accordance with Munford and Pugin's hypothesis[20] that every systemic inflammatory response is associated with a possible delayed immunosuppressive mechanism. Similarly, patients with severe sepsis secondarily develop a 'compensatory anti-inflammatory response syndrome' in reaction to inflammatory septic stress. Furthermore, the persistence of low mHLA-DR expression over time in patients with septic shock is associated with an increased risk of death or secondary infections.[11,21]
In the present study, the lowest levels of mHLA-DR expression at D0 were observed in the two patients who developed pneumonia (5738 AB/C and 9793 AB/C, respectively). In VOC setting, a low mHLA-DR expression could identify an underlying ongoing infection and contribute to an early identification of high-risk patients.
Overall, mHLA-DR expression significantly decreases in SCA patients during VOC occurrence. Further studies should be conducted to confirm these preliminary results and to establish relationships between putative immunosuppression and an increased risk for infection. Upon confirmation in larger cohorts, mHLA-DR may become an informative biomarker to monitor patients during the crisis, especially as its cost and feasibility are not limiting factors in developed countries. Unfortunately, this biomarker should not be easily affordable in most tropical African settings where most SCA patients reside.

Author Contributions

RF designed the study, analyzed and interpreted data, and drafted the manuscript; GM and FV provided immunologic data; GC provided patients and control cohort, participated in therapy decision-making and patient care, reviewed the manuscript, and gave final approval; PC and EN performed statistical analyses; AH designed the study, analyzed and interpreted data, participated to therapy decision making and patient care, reviewed the manuscript, and gave final approval. All authors approved the final manuscript.


  1. Kato GJ, Piel FB, Reid CD, Gaston MH, Ohene-Frempong KR, Panepinto JA, Weatherall DJ, Costa FF, Vichinsky EP. Sickle cell disease. Nat Rev Dis Primers. 2018;4:18010. PMid:29542687
  2. Booth C, Inusa B, Obaro SK. Infection in sickle cell disease: A review. International Journal of Infectious Diseases. 2010;14:e2-e12. PMid:19497774
  3. Ramakrishnan M, Moïsi JC, Klugman KP, Iglesias JM, Grant LR, Mpouti-Etame M, Levine OS. Increased risk of invasive bacterial infections in African people with sickle-cell disease: a systematic review and meta-analysis. Lancet Infect Dis. 2010;10:329-337.
  4. Yawn BP, Buchanan GR, Afenyi-Annan AN, Ballas SK, Hassell KL, James AH, Jordan L, Lanzkron SM, Lottenberg R, Savage WJ, Tanabe PJ, Ware RE, Murad MH, Goldsmith JC, Ortiz E, Fulwood R, Horton A, John-Sowah J. Management of sickle cell disease: summary of the 2014 evidence-based report by expert panel members. JAMA. 2014;312:1033- 1048. PMid:25203083
  5. McCavit TL, Quinn CT, Techasaensiri C, Rogers ZR. Increase in invasive Streptococcus pneumoniae infections in children with sickle cell disease since pneumococcal conjugate vaccine licensure. J. Pediatr. 2011;158:505-507. PMid:21193205 PMCid:PMC3062091
  6. Brousse V, Buffet P, Rees D. The spleen and sickle cell disease: the sick(led) spleen. Br. J. Haematol.2014;166:165-176. PMid:24862308
  7. Gavriilaki E, Mainou M, Christodoulou I, Koravou EE, Paleta A, Touloumenidou T, Papalexandri A, Athanasiadou A, Apostolou C, Klonizakis P, Anagnostopoulos A, Vlachaki E. In vitro evidence of complement activation in patients with sickle cell disease. Haematologica. 2017;102:e481-e482. PMid:28912175 PMCid:PMC5709116
  8. Prasad AS, Beck FW, Kaplan J, Chandrasekar PH, Ortega J, Fitzgerald JT, Swerdlow P. Effect of zinc supplementation on incidence of infections and hospital admissions in sickle cell disease (SCD). Am. J. Hematol. 1999;61:194-202.;2-C
  9. Wu JF, Ma J, Chen J, Ou-Yang B, Chen MY, Li LF, Liu YJ, Lin AH, Guan XD. Changes of monocyte human leukocyte antigen-DR expression as a reliable predictor of mortality in severe sepsis. Crit Care. 2011;15:R220. PMid:21933399 PMCid:PMC3334765
  10. Gouel-Chéron A, Allaouchiche B, Guignant C, Davin F, Flocard B, Monneret G, for the AzuRea Group. Early interleukin-6 and slope of monocyte human leukocyte antigen-DR: a powerful association to predict the development of sepsis after major trauma. PLoS ONE. 2012;7:e33095. PMid:22431998 PMCid:PMC3303782
  11. Monneret G, Lepape A, Voirin N, Bohé J, Venet F, Debard AL, Thizy H, Bienvenu J, Gueyffier F, Vanhems P. Persisting low monocyte human leukocyte antigen-DR expression predicts mortality in septic shock. Intensive Care Med.2006;32:1175-1183. PMid:16741700
  12. Okpala I. The intriguing contribution of white blood cells to sickle cell disease - a red cell disorder. Blood Rev.2004;18:65-73.
  13. Pathare A, Al Kindi S, Alnaqdy AA, Daar S, Knox-Macaulay H, Dennison D. Cytokine profile of sickle cell disease in Oman. Am. J. Hematol.2004;77:323-328. PMid:15551290
  14. Alagbe AE, Olaniyi JA,Aworanti OW.Adult sickle cell anaemia patients in bone pain crisis have elevated pro-inflammatory cytokines.Mediterr J Hematol Infect Dis 2018, 10(1): e2018017 PMid:29531654 PMCid:PMC5841944
  15. Belcher JD, Marker PH, Weber JP, Hebbel RP, Vercellotti GM. Activated monocytes in sickle cell disease: potential role in the activation of vascular endothelium and vaso-occlusion. Blood. 2000;96:2451-2459. PMid:11001897
  16. Winkler MS, Rissiek A, Priefler M, Schwedhelm E, Robbe L, Bauer A, Zahrte C, Zoellner C, Kluge S, Nierhaus A. Human leucocyte antigen (HLA-DR) gene expression is reduced in sepsis and correlates with impaired TNFα response: A diagnostic tool for immunosuppression? PLoS ONE. 2017;12:e0182427. PMid:28771573 PMCid:PMC5542660
  17. Monneret G, Venet F. Monocyte HLA-DR in sepsis: shall we stop following the flow? Crit Care. 2014;18:102. PMid:24393356 PMCid:PMC4056426
  18. Graido-Gonzalez E, Doherty JC, Bergreen EW, Organ G, Telfer M, McMillen MA. Plasma endothelin-1, cytokine, and prostaglandin E2 levels in sickle cell disease and acute vaso-occlusive sickle crisis. Blood. 1998;92:2551-2555. PMid:9746797
  19. Keikhaei B, Mohseni AR, Norouzirad R, Alinejadi M, Ghanbari S, Shiravi F, Solgi G. Altered levels of pro-inflammatory cytokines in sickle cell disease patients during vaso-occlusive crises and the steady state condition. Eur. Cytokine Netw.2013;24:45-52. PMid:23608554
  20. Munford RS, Pugin J. Normal responses to injury prevent systemic inflammation and can be immunosuppressive. Am. J. Respir. Crit. Care Med.2001;163:316-321. PMid:11179099
  21. Landelle C, Lepape A, Voirin N, Tognet E, Venet F, Bohé J, Vanhems P, Monneret G. Low monocyte human leukocyte antigen-DR is independently associated with nosocomial infections after septic shock. Intensive CareMed. 2010;36:1859-1866. PMid:20652682
