Can Polycythemia Vera Evolve from Acute Myeloid Leukemia? Report of a Case Showing a Simultaneous Minor JAK2 V617F Mutated Clone

Beatrice Borsellino1,2, Arianna Savi1, Maria Rosaria Pascale1, Elisa Meddi1, Maria Ilaria Del Principe1, Antonio Cristiano1, Tiziana Ottone1,3, Maria Cristina Rapanotti1,5, Mariadomenica Divona1,4, Serena Travaglini1, Enrico Attardi1, Raffaele Palmieri1, Elisa Buzzatti1, Francesco Buccisano1 and Maria Teresa Voso1,3.

1 Department of Biomedicine and Prevention, University of Tor Vergata, Rome, Italy.
2 Hematology Clinic, Department of Clinical and Molecular Sciences, DISCLIMO, AOU Ospedali Riuniti-Università Politecnica delle Marche, Ancona, Italy.
3 Neuro-Oncohematology Unit, IRCCS Fondazione Santa Lucia, Rome, Italy.
4 UniCamillus‐Saint Camillus International University of Health Sciences, Rome Italy.
5 Department of Experimental Medicine, Tor Vergata University of Rome, Rome, Italy.

Correspondence to: Prof.ssa Maria Teresa Voso. Department of Biomedicine and Prevention. Tor Vergata University. Rome, Italy.

Published: July 1, 2022
Received: April 7, 2022
Accepted: June 18, 2022
Mediterr J Hematol Infect Dis 2022, 14(1): e2022058 DOI 10.4084/MJHID.2022.058

This is an Open Access article distributed under the terms of the Creative Commons Attribution License
(, which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.


The evolution of myeloproliferative neoplasms (MPN) to acute myeloid leukemia (AML) occurs in 2-10% of patients, depending on the MPN subtype, treatment, and follow-up length. The reverse-path from AML to MPN has been rarely reported.
We herein present a 75 years old woman with AML, in whom a
JAK2-V617F positive polycythemia vera (PV) emerged during follow-up, 19 months from the end of consolidation treatment.
JAK2-V617F mutation screening retrospectively performed by Next Generation Sequencing (NGS) and JAK2 MutaScreen was negative on the bone marrow sample collected at AML diagnosis. However, using digital droplet PCR (ddPCR), we detected a minor JAK2 V617F mutated clone at AML onset. In addition, a TET2 R550 mutated clone persisted at stable levels throughout the disease course.
This case shows that a very small MPN clone masked at AML diagnosis may expand after treatment end and be erroneously interpreted as MPN evolving from AML. Very sensitive techniques such as ddPCR may help to unravel the true disease history in these cases.


Myeloproliferative neoplasms (MPNs) are acquired clonal disorders characterized by aberrant hematopoietic proliferation and the increased tendency towards leukemic transformation.[1,2] The risk of leukemic progression varies depending on the MPN subtype, with primary myelofibrosis (PMF) associated with the highest transformation risk (10-year risk: 10-20%), followed by polycythemia vera (PV) and essential thrombocythemia (TE) (10-year risk: 2-4% and about 1%, respectively).[3-5] Activating mutations of the JAK/STAT pathway, primarily in the JAK2 gene (mainly JAK2 V617F), are frequently found in patients with MPNs and rarely occur in de novo Acute Myeloid Leukemia (AML) with a frequency of about 1%.[1,6,7] This highlights the crucial role of JAK2 mutations as phenotypic drivers in MPN, particularly in PV, where JAK2 V617F mutation is found in 95% of patients.[2] Here, we used this molecular marker to trace the origin of the disease in a case of PV manifested two years after AML diagnosis.
PV is a MPN characterized by abnormal red blood precursor cells proliferation and erythrocytosis, often associated with thrombocytosis and leukocytosis. Despite progression to AML is a possible evolution of MPN, only a few cases of
JAK2 V617F-positive PV developing while in long-term remission from AML have been previously described.[8-12]
Here, we reported on a patient diagnosed with AML, who was treated with conventional 7+3 based-chemotherapy, achieved complete remission, and developed a
JAK2-mutated PV two years after the end of consolidation treatment. We were interested in the biological features of the two diseases to define better the onset of the MPN clone and its kinetics.
A 73-year-old fit female came to our observation in June 2019 due to mild anemia (Hb 10.6 g/dl), monocytosis (1.760 x109/L), and neutropenia (0.700 x109/L). Personal and familiar history was negative, and blood counts assessed two years before were normal. The peripheral blood smear showed 25% myeloid blasts, and the bone marrow aspirate contained 80% CD34+/CD33+/CD7+, CD117+, CD13+, DR+, MPO+ blasts, consistent with the diagnosis of AML. Cytogenetics showed monosomy of chromosome X in 6 of 20 metaphases, while the molecular profile was negative for recurrent mutations, including mutations in FLT3, NPM1, IDH1, and IDH2 genes. Next-generation sequencing (NGS) was performed on DNA extracted from bone marrow mononuclear cells (BM-MNC) and highlighted the presence of TET2 p.Y1560* (variant allele frequency, VAF: 39.3%) and TET2 p.R550* (VAF: 44.9%) mutations. According to ELN 2017 risk stratification, the disease was classified as intermediate risk.[13] She started the "7+3" chemotherapy regimen, obtaining complete remission (CR) and minimal residual disease negativity (MRD) by flow cytometry (sensitivity < 0.035%). She then underwent two high-dose cytarabine consolidation courses. Treatment was complicated by one episode of pulmonary embolism during induction and later on by a catheter-related thrombosis during consolidation treatment. Thrombophilia tests, including antithrombin deficiency, protein C and S deficiency, factor V Leiden, prothrombin mutation, dysfibrinogenemia, anticardiolipin antibodies, anti-beta2 glycoprotein I antibodies, hyperhomocysteinemia and lupus anticoagulant, were negative. She was then monitored through sequential complete blood counts and BM aspirates, performed every three months. After two years, while still in CR, the patient's blood counts showed a progressive increase in hemoglobin and hematocrit (Figure 1). Erythropoietin levels were within normal lower limits (3.7 mU/mL, normal range: 3.7-31.5), and the JAK2-V617F mutation was positive in peripheral blood. The bone marrow biopsy showed increased cellularity (30%), normal myeloid maturation, less than 3% CD34+ blast cells, and no signs of fibrosis (MF-0, according to 2017 WHO classification),[14] thus confirming the diagnosis of PV. The NGS analysis showed the following mutations: TET2 p.R550*(VAF: 46%), and
JAK2 p.V617F (VAF: 43.4%), while cytogenetics was normal (46, XX). Figure 2 shows the expansion of the JAK2 V617F mutated clone. Due to the increased hematocrit, the patient started therapeutic phlebotomies and hydroxyurea, according to the "high" thrombotic risk category.[15]

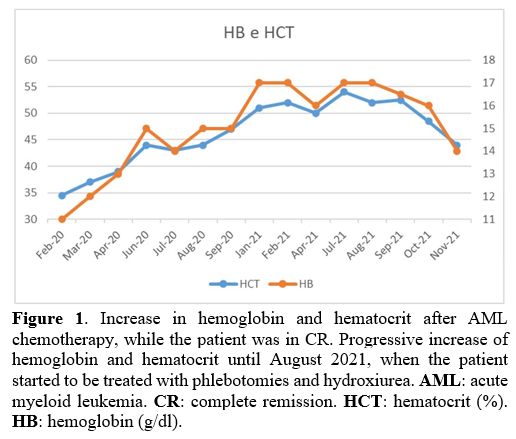

Figure 1 Figure 1. Increase in hemoglobin and hematocrit after AML chemotherapy, while the patient was in CR. Progressive increase of hemoglobin and hematocrit until August 2021, when the patient started to be treated with phlebotomies and hydroxiurea. AML: acute myeloid leukemia. CR: complete remission. HCT: hematocrit (%). HB: hemoglobin (g/dl).

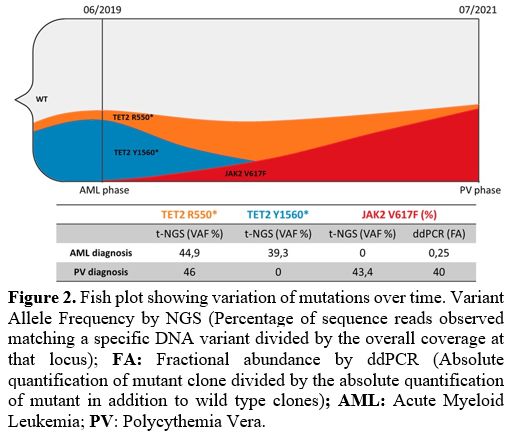

Figure 2 Figure 2. Fish plot showing variation of mutations over time. Variant Allele Frequency by NGS (Percentage of sequence reads observed matching a specific DNA variant divided by the overall coverage at that locus); FA: Fractional abundance by ddPCR (Absolute quantification of mutant clone divided by the absolute quantification of mutant in addition to wild type clones); AML: Acute Myeloid Leukemia; PV: Polycythemia Vera.

We then traced back the JAK2 V617F mutated clone at the time of AML diagnosis using the MutaScreen assay (Ipsogen, Luminy Biotech, Marseille, France), which provides 2% cut-off sample (COS) positivity, and NGS (2% sensitivity). Both were negative for JAK2 mutation. To further exclude the presence of a JAK2-mutated clone at the time of AML diagnosis, we performed a digital droplet PCR (ddPCR) assay, which has a sensitivity of 0.05%,[16,17] which resulted positive for JAK2 V617F (Figure 3), suggesting that this mutation was present at a subclonal levels at the time of AML diagnosis and undetectable when measured using other conventional diagnostic tools.

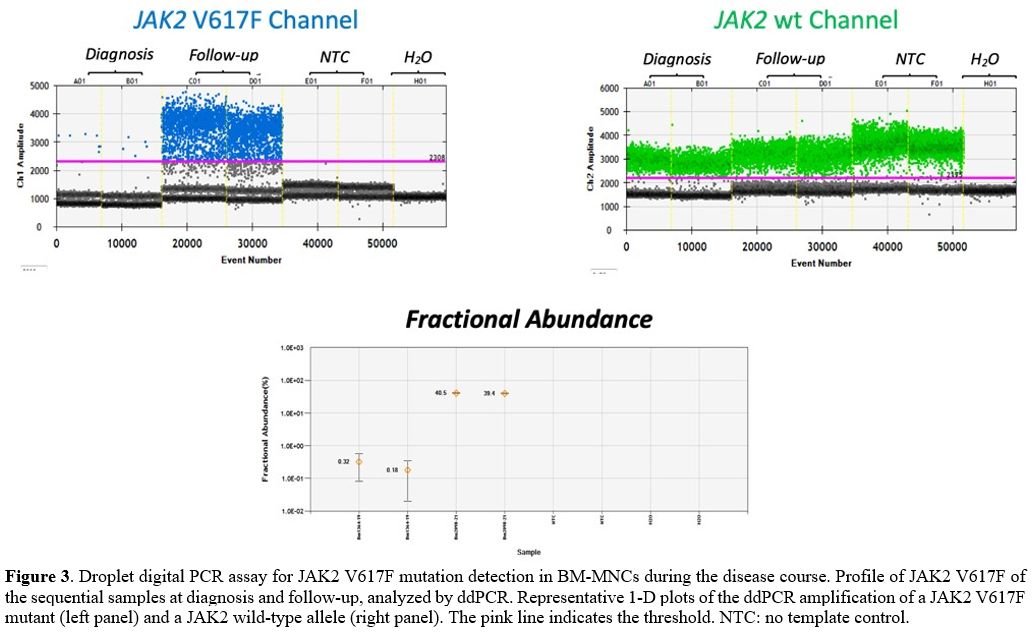

Figure 3 Figure 3. Droplet digital PCR assay for JAK2 V617F mutation detection in BM-MNCs during the disease course. Profile of JAK2 V617F of the sequential samples at diagnosis and follow-up, analyzed by ddPCR. Representative 1-D plots of the ddPCR amplification of a JAK2 V617F mutant (left panel) and a JAK2 wild-type allele (right panel). The pink line indicates the threshold.NTC: no template control.


We report on a patient erroneously diagnosed as MPN evolving from AML, in which a small mutated clone present at the time of AML onset expanded during AML follow-up and manifested as overt PV. Indeed, during AML follow-up, the high levels of hemoglobin and the persistently increased hematocrit provided the clues to research the JAK2 mutation in the peripheral blood, which resulted positive.
Tracking back the
JAK2 mutation at the AML diagnosis, we found a minor subclone detectable by ddPCR only, confirming this approach's ability to detect mutant cases early during the disease course. The small clone was probably suppressed by the overt AML blast infiltration at diagnosis. Now the question is whether the two diseases are independent, or can AML be considered an evolution of PV in this case?
The patient was found to carry two TET2 mutations at high VAF. One disappeared at the time of achievement of CR, indicating that it was probably related to the AML clone, while the other was present at high VAF both at AML and PV diagnosis, suggesting that this was a large mutated clone, generating genomic instability, hence the predisposition for the development of both diseases.[18]
MPN may have arisen independently, but it is impossible to exclude that the diseases might have evolved from a common precursor.
The second hypothesis would be that AML represented the evolution of MPN.
JAK2-WT development of PV has been described in 2-4% of cases, and usually, in these cases, TET2-mutation occurs "first", as in our patient.[5] However, secondary AMLs are generally characterized by poor prognosis and unfavorable or complex karyotype. In contrast, in this case, the intermediate-risk and absence of adverse mutations like TP53 render the diagnosis of de novo AML more likely. Accordingly, complete remission was achieved after "7+3" induction chemotherapy followed by a prolonged disease-free survival, which has now reached 33 months.[19]
The two diseases are most likely independent. Indeed, Hb, HCT, WBC, and PLTs measured two years before AML diagnosis were normal, indicating that MPN was not present then. The patient did not have any other blood tests performed until AML diagnosis; however, it is unlikely that a MPN could have evolved in AML during this time, given that the average evolution time is usually longer (incidence of leukemic transformation of PV and ET: 2%-5% at 15 years).[20] The patient had a pulmonary embolism and a catheter-related thrombosis during AML chemotherapy. Thrombophilic and cardiovascular risk factors (obesity, hypercholesterolemia, hypertension, smoking, and second tumor) were negative. Therefore, we can suppose that the thrombotic tendency could be favored by the presence of the small myeloproliferative clone present at AML diagnosis.
One additional hypothesis is that the initial low-level
JAK2 mutation was part of clonal hematopoiesis of indeterminate potential (CHIP), where JAK2 is one of the most frequently mutated genes.[21,22,12]
In conclusion, we interpret the two diseases as simultaneous and not sequential, further supporting the idea of competing clones in myeloid malignancies.[23] The lack of sequential samples after AML diagnosis did not allow for the correlation of the kinetics of emergence of the
JAK2 mutant clone. Previous studies reported in the literature speculated the possibility that intensive induction chemotherapy for AML, which results in the ablation of the BM microenvironment, may provide a suitable niche for pre-existing JAK2 V617F-positive stem cells with clonal potential to expand, resulting in the appearance of PV.[8-12]
In summary, our report indicates that the coexistence of AML and MPNs could be possible beyond the natural history of myeloid malignancies, leading physicians to proceed to the diagnostic algorithm of MPN also in the presence of subtle clues that could suggest a "color change" towards myeloproliferative phenotype. The availability of sensitive diagnostic techniques such as ddPCR may provide the necessary diagnostic support to unravel these situations.


This study was supported in part by AIRC 5x1000 call "Metastatic disease: the key unmet need in oncology" to MYNERVA project, #21267 (MYeloid NEoplasms Research Venture) AIRC. A detailed description of the MYNERVA project is available at, by Ricerca finalizzata, code NET-2018-12365935 and PRIN grant N. 2017WXR7ZT to MTV.


  1. Aynardi J, Manur R, Hess PR, Chekol S, Morrissette JJD, Babushok D et al. JAK2 V617F-positive acute myeloid leukaemia (AML): a comparison between de novo AML and secondary AML transformed from an underlying myeloproliferative neoplasm. A study from the Bone Marrow Pathology Group. Br J Haematol 2018; 182: 78-85. PMid:29767839
  2. Passamonti F, Rumi E, Pietra D, Elena C, Boveri E, Arcaini L et al. A prospective study of 338 patients with polycythemia vera: the impact of JAK2 (V617F) allele burden and leukocytosis on fibrotic or leukemic disease transformation and vascular complications. Leukemia 2010; 24: 1574-1579. PMid:20631743
  3. Mesa RA, Verstovsek S, Cervantes F, Barosi G, Reilly JT, Dupriez B et al. Primary myelofibrosis (PMF), post polycythemia vera myelofibrosis (post-PV MF), post essential thrombocythemia myelofibrosis (post-ET MF), blast phase PMF (PMF-BP): Consensus on terminology by the international working group for myelofibrosis research and treatment (IWG-MRT). Leuk Res 2007; 31: 737-740. PMid:17210175
  4. Tefferi A, Guglielmelli P, Larson DR, Finke C, Wassie EA, Pieri L et al. Long-term survival and blast transformation in molecularly annotated essential thrombocythemia, polycythemia vera, and myelofibrosis. Blood 2014; 124: 2507-13; quiz 2615. PMid:25037629 PMCid:PMC4199952
  5. Dunbar AJ, Rampal RK, Levine R. Leukemia secondary to myeloproliferative neoplasms. Blood. 2020;136(1):61-70. PMid:32430500 PMCid:PMC7332899
  6. Theocharides A, Boissinot M, Girodon F, Garand R, Teo S-S, Lippert E et al. Leukemic blasts in transformed JAK2-V617F-positive myeloproliferative disorders are frequently negative for the JAK2-V617F mutation. Blood 2007; 110: 375-379. PMid:17363731
  7. Kralovics R, Passamonti F, Buser AS, Teo S-S, Tiedt R, Passweg JR et al. A gain-of-function mutation of JAK2 in myeloproliferative disorders. N Engl J Med 2005; 352: 1779-1790. PMid:15858187
  8. Youk H-J, Cho C-H, Lee J-H, Choi CW, Lim CS, Yoon S-Y. A rare case of polycythemia vera following acute undifferentiated leukemia remission. Ann. Lab. Med. 2014; 34: 469-470. PMid:25368824 PMCid:PMC4215407
  9. Portell CA, Sekeres MA, Rogers HJ, Tiu R V. De novo polycythaemia vera arising 5 years following acute myeloid leukemia remission: suggestion of a chemotherapy resistant JAK2 clone. Br. J. Haematol. 2012; 157: 266-267. PMid:22150289
  10. Antonioli E, Guglielmelli P, Poli G, Santini V, Bosi A, Vannucchi AM. Polycythemia vera following autologous transplantation for AML: insights on the kinetics of JAK2V617F clonal dominance. Blood 2007; 110: 4620-4621. PMid:18056850
  11. Belotti A, Doni E, Elli E, Rossi V, Pioltelli P, Pogliani EM. Development of polycythemia vera after chemotherapy-induced remission of acute myeloid leukemia: a case report. Acta Haematol. 2011; 126: 52-3. PMid:21454967
  12. Langabeer SE, O'Flynn DW, Cahill MR. Polycythemia vera emerging eighteen years after acute myeloid leukemia diagnosis. Blood Res. 2021; 56: 121-123. PMid:33986187 PMCid:PMC8246042
  13. Döhner H, Estey E, Grimwade D, Amadori S, Appelbaum FR, Ebert BL et al. Diagnosis and management ofAML in adults: 2017 ELN recommendations from an international expert panel. Blood 2017; 129: 424-448. PMid:27895058 PMCid:PMC5291965
  14. Barbui T, Thiele J, Gisslinger H, Kvasnicka HM, Vannucchi AM, Guglielmelli P et al. The 2016 WHO classification and diagnostic criteria for myeloproliferative neoplasms: document summary and in-depth discussion. Blood Cancer J 2018; 8: 15. PMid:29426921 PMCid:PMC5807384
  15. Tefferi A, Barbui T. Polycythemia vera and essential thrombocythemia: 2021 update on diagnosis, risk-stratification and management. Am J Hematol 2020; 95: 1599-1613. PMid:32974939
  16. Waterhouse M, Follo M, Pfeifer D, von Bubnoff N, Duyster J, Bertz H et al. Sensitive and accurate quantification of JAK2 V617F mutation in chronic myeloproliferative neoplasms by droplet digital PCR. Ann Hematol 2016; 95: 739-744. PMid:26931113
  17. Krichevsky S, Prus E, Perlman R, Fibach E, Ben-Yehuda D. The JAK2V617F mutation in normal individuals takes place in differentiating cells. Blood Cells Mol Dis 2017; 63: 45-51. PMid:28126623
  18. Sallman DA, DeZern AE, Garcia-Manero G, Steensma DP, Roboz GJ, Sekeres MA et al. Eprenetapopt (APR-246) and Azacitidine in TP53-Mutant Myelodysplastic Syndromes. J Clin Oncol Off J Am Soc Clin Oncol 2021; 39: 1584-1594. PMid:33449813 PMCid:PMC8099410
  19. Grinfeld J, Nangalia J, Baxter EJ, Wedge DC, Angelopoulos N, Cantrill R et al. Classification and Personalized Prognosis in Myeloproliferative Neoplasms. N Engl J Med 2018; 379: 1416-1430. PMid:30304655 PMCid:PMC7030948
  20. Luque Paz D, Jouanneau-Courville R, Riou J, Ianotto J-C, Boyer F, Chauveau A et al. Leukemic evolution of polycythemia vera and essential thrombocythemia: genomic profiles predict time to transformation. Blood Adv 2020; 4: 4887-4897. PMid:33035330 PMCid:PMC7556129
  21. Jaiswal S, Fontanillas P, Flannick J, Manning A, Grauman PV, Mar BG et al. Age-related clonal hematopoiesis associated with adverse outcomes. N Engl J Med. 2014; 371: 2488-98. PMid:25426837 PMCid:PMC4306669
  22. Desai P, Mencia-Trinchant N, Savenkov O, Simon MS, Cheang G, Lee S, Samuel M et al. Somatic mutations precede acute myeloid leukemia years before diagnosis. Nat Med. 2018; 24: 1015-1023. PMid:29988143 PMCid:PMC6849383
  23. Al-Kali A, Verstovsek S, Kantarjian H, Luthra R, Cortes J. Competing cell clones in myeloproliferative neoplasm. Blood. 2010; 116: 5074-5075. PMid:21127188 PMCid:PMC4916558
