Policlinico A. Gemelli,
UOC of Internal Medicine, Gastroenterology and Liver Diseases.
L.go Gemelli, 8 Rome, Italy
2 Fondazione Policlinico A. Gemelli, Institute of Haematology, L.go Gemelli, 8 Rome, Italy
| This is an Open Access article distributed
under the terms of the Creative Commons Attribution License
(https://creativecommons.org/licenses/by-nc/4.0), which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited.
Gut microbiota has gained increasing interest in the pathogenesis of immune-related diseases. In this context, graft-versus-host disease is a condition characterized by an immune response which frequently complicates and limits the outcomes of hematopoietic stem cell transplantations. Past studies, carried mostly in animals, already supported a relationship between gut microbiota and graft-versus-host disease. However, the possible mechanisms underlying this connection remain elusory. Moreover, strategies to prevent graft-versus-host disease are of great interest as well as the potential role of gut microbiota modulation. We reviewed the role of gut microbiota in the development of immune system and its involvement in the graft-versus-host disease, focusing on data available on humans.
Microbiota is the complex system of bacteria, archaea, viruses and
fungi living in several body niches, such as skin, vagina, nose and
mouth. However, the majority of microorganisms live in the digestive
tract. Gut microbiota should be considered a real organ, accounting 100
times more genes than the host and being responsible for multiple
functions and in particular of the metabolic and immune homeostasis.
Recent studies demonstrated that gut microbiota is only the first layer of a multilayer barrier separating our organism from the content of intestinal lumen and, thus, from the external environment: the so-called “gut barrier”. This barrier is composed, beyond microbiota, by the mucus layer on the epithelial cells, the epithelial cells themselves, the immune cells harboring in the submucosa and by the bidirectional interactions between all these layers (Figure 1). Its integrity is essential to maintain the homeostasis, and its disruption has been associated with many gastrointestinal and extragastrointestinal diseases. Whereas the role of gut barrier disruption appears clear in gastrointestinal disorders, its role in extragastrointestinal diseases could be harder to understand. The basis of this role should be searched in the complex function of immune stimulation/tolerance that gut microbiota exerts.

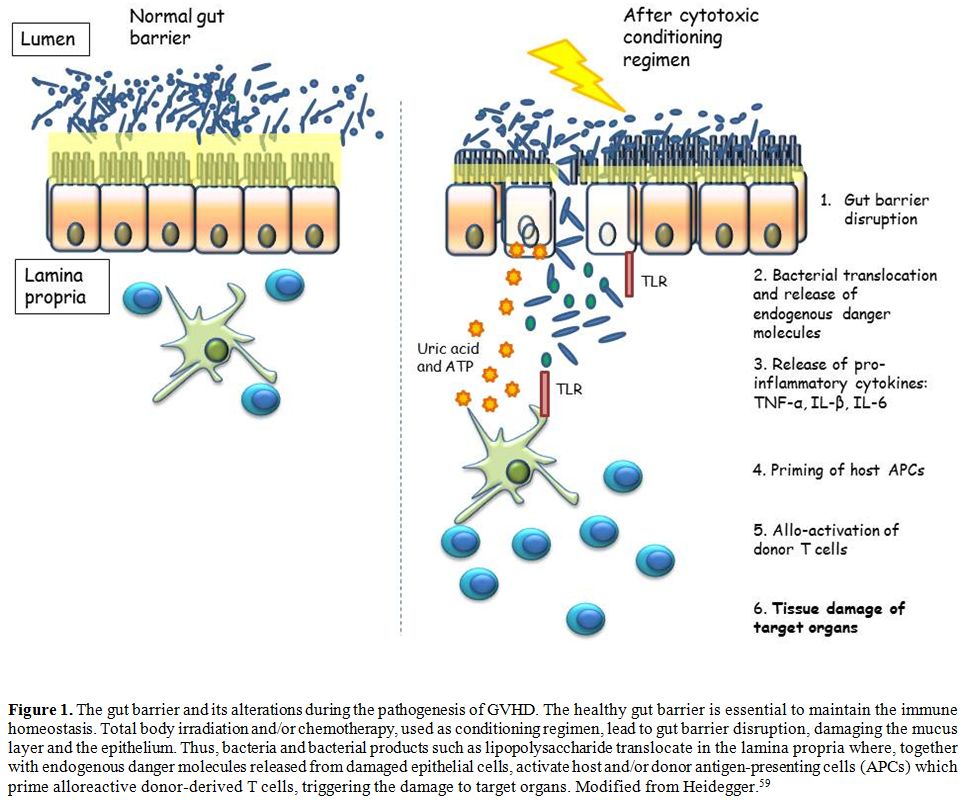

|Figure 1. The gut barrier and its alterations during the pathogenesis of GVHD. The healthy gut barrier is essential to maintain the immune homeostasis. Total body irradiation and/or chemotherapy, used as conditioning regimen, lead to gut barrier disruption, damaging the mucus layer and the epithelium. Thus, bacteria and bacterial products such as lipopolysaccharide translocate in the lamina propria where, together with endogenous danger molecules released from damaged epithelial cells, activate host and/or donor antigen-presenting cells (APCs) which prime alloreactive donor-derived T cells, triggering the damage to target organs. Modified from Heidegger.|
Hematopoietic stem cell transplantation (HSCT) is a
potentially curative therapy for many diseases, mostly hematological,
otherwise associated with a poor prognosis. Unfortunately, the
widespread use of this treatment is often restricted by the development
of graft-versus-host disease (GVHD) a condition in which
immunocompetent donor T cells attack host tissues in immunocompromised
patients, constituting one of the leading causes of non-relapse
mortality. GVHD depends on several factors, such as
age, conditioning regimen, hematopoietic graft source and prophylaxis.
The traditional classification of GVHD is based on the timing of onset:
acute (aGVHD), within the first 100 days after HSCT, and chronic
(cGVHD), after the first 100 days. However, beyond the temporal
criterion, aGVHD and cGVHD are different diseases, with characteristic
clinical presentation, diagnostic criteria, and tissue pathology.
Systemic inflammation and tissue disruption predominate in aGVHD,
whereas the immune dysregulation leading to several infections is the
prevalent presentation in cGVHD. Thus, the
characteristic clinical manifestations became the diagnostic features
instead of the time of the onset, based on National Institutes of
Health (NIH) consensus criteria.
In particular, in this review we discuss the role of gut microbiota in the GVHD, focusing on data on humans.
The Healthy Gut Microbiota
In the last years, the increasing interest on human gut microbiota
led to large-scale attempts to characterize it. The association of
traditional cultural techniques with new molecular techniques based on
the analysis of the small subunit ribosomal RNA (SSU rRNA) gene
sequences as phylogenetic markers made bacteria the most known
components of gut microbiota, identifying more than 1000 species.
Bacteria together with Archaea and Eukaryota constitute the three
kingdoms in which life is classified. Bacteria are subclassified in
many phyla (plural of phylum, major taxonomic division that contains
one or more classes, Box 1),
but only a few phyla are mostly represented, accounting for more than
160 species, and, among them, Firmicutes (consisting mainly of
Gram-positive clostridia) and Bacteroidetes (consisting mainly of
Gram-negative bacteria) are prevalent.[1,5]
These two phyla, together with the less represented Actinobacteria and
Proteobacteria are not only the most abundant, but also include
the most diverse microorganisms in
the adult gastrointestinal tract. Other represented phyla
are Verrucomicrobia, Lentisphaerae, Synergistetes, Planctomycetes,
Tenericutes and the Deinococcus-Thermus group, Melainabacteria, and
Gemmatimonacete. Regarding the other two kingdoms, the Euryarchaeota,
including the highly represented methanogens, are the most represented
Archaea, whereas, among the Eukarya, some Candida spp are the most
The earliest years of life are essential for the development of individual microbiota that depends on several factors, such as maternal and family members microbiota, kind of delivery, breastfeeding and early exposure to antibiotics. After this phase, individual microbiota composition is stable in the adult life for decades, and it may be the same also for the entire lifetime unless perturbing factors occur, such as antibiotic therapies or infections.

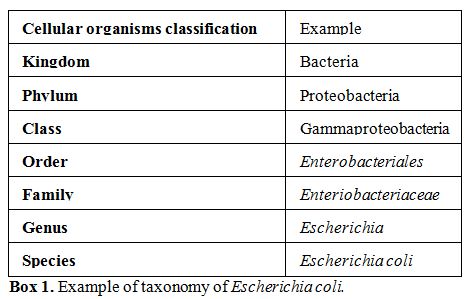

|Box 1. Example of taxonomy of Escherichia coli.|
The Role of Gut Microbiota in the Immune Regulation
The correct development of gut microbiota is strictly related to the
healthy maturation of the immune system, and both develop in the first
2 years of life. In fact gut microbiota constitutes a stimulus that
drives the development of the immune system in its capacity to react to
pathogens and in the induction and maintenance of the tolerance
process. On the other side, immune dysregulation can induce an
alteration in gut microbiota.[7,8] The importance of
this bidirectional relationship has been highlighted by data from
germ-free (GF) animals that showed reduced development of both innate
and adaptive immunity with increased susceptibility to microbial
The integrity of the gut barrier is the basis of the healthy stimulation of the immune system by microbiota.
In fact, the continuous stimulation by luminal commensal antigens should be regulated to avoid the over-stimulation of the immune system. This is warranted by the presence of a physical barrier between gut microbiota and host immune cells, composed of epithelial cells and the mucus layer above them. In particular, the mucus layer consists of an inner and an outer layer, but whereas the outer one is colonized by large numbers of bacteria, the inner one, thicker than the outer one, constitutes a barrier for them.[11,12] Furthermore, even innate lymphoid cells[13,14] and IgAs contribute to reduce the penetration of microorganisms through the epithelial cells and their presentation to the immune system. Microbiota is essential for the correct development of both innate and adaptive immune response.
Conversely, microbiota needs a healthy immune system to correct its development. In fact, for example, the deficit in IgA response alters the composition of microbiota.[16-18]
Microbiota and the Innate Immune Response
microbiota could regulate lamina propria phagocytes and, in particular,
it could increase the production of pro-IL1β in resident macrophages and neutrophils,
that could be rapidly activated in IL1β in response to pathogens.
Microbiota could also influence systemic neutrophils response enhancing
their bactericidal activity triggering the NOD1 signaling through
Microbiota and the Adaptive Immune Response
Data from germ-free (GF) animals demonstrated that when the microbiota is absent, there is a shift through a T-helper (Th)2 response, due to a reduced number of Th1 and Th17 cells, which could be reversible in case of colonization of the gut by flora. In particular, in the small intestine Th17 cells could be stimulated mainly by segmented filamentous bacteria (SFB), species belonging to commensal Clostridia-related bacteria,[21-24] and Lactobacillus johnsonii.
Beyond T cells, also B cells and immunoglobulins production are influenced by microbiota. In fact, the intestinal mucosa is essential to the correct development of B cells as well as fetal liver and bone marrow, and microbiota is able to regulate intestine-specific B-cell receptor.[26,27] In fact, the presence of commensal microorganisms in the gut stimulates gut-associated lymphoid tissues (GALTs), such as both Peyer’s patches and isolated lymphoid follicles.[28-30] The continuous stimulation induces germinal center formation in isolated lymphoid follicles and Peyer’s patches and IgA production, differently from systemic lymphoid organs where germinal center formation does not occur under physiological condition, but only after a specific- i.e. infectious- stimulation. In fact, microbial products are required to stimulate the germinal centers in lymphoid follicles and IgA production, in particular through Nucleotide-binding oligomerization domain-containing protein (NOD)1-mediated signaling.[18,32,33]
Tolerance Education by Microbiota
Colonic FoxP3+ T regulatory (Treg) cells are strongly influenced by the presence of gut microbiota. In fact, they are reduced in colonic lamina propria in the absence of gut microbiota stimulation, whereas the presence of gut microbiota is less relevant for Treg of the small intestine or mesenteric lymph nodes.[34,35] In particular, murine data demonstrated that Clostridia and Bacteroides fragilis could be the most powerful inducers of Treg,[34-39] probably working through different mechanisms which could be dependent and independent from toll-like receptors (TLRs) signaling. Among TLRs-independent pathways, short-chain fatty acids (SCFAs) - bacterial metabolites deriving from carbohydrates fermentation, including acetate, propionate, isobutyrate and butyrate- seem to be able to increase the acetylation of the Foxp3 locus, increasing the number of Treg directly or, indirectly, increasing the production of TGFβ in the intestinal epithelium.[36,40-42] Furthermore, SCFAs induced the expression of the receptor GPR15, responsible for recruitment of Treg in the large intestine.[40-50] Similarly, the folic acid produced by colonic microorganisms could increase the survival of Treg cells. Furthermore, gut microbiota could stimulate the production of the anti-inflammatory cytokine IL10 by intestinal macrophages.
The Allogenic Transplant and the Graft-versus-Host Disease
Every year, more than 39000
HSCT are performed only in Europe for an ever expanding number of
neoplastic and non-neoplastic diseases, in particular for hematological
conditions such as leukemias and lymphomas.
HSCT is still limited by the development of GVHD, a condition that
results from the interaction between the host cells which are targeted
by the transplanted donor immune cells, primarily T cells.GVHD
was historically classified in acute and chronic, respectively, if the
onset of symptoms was before or after 100 days. However recent
advantages questioned these definitions, and current consensus states
that clinical features define GVHD as acute or chronic.
occurs mainly in the skin, GI, and liver. GI manifestations of aGVHD
include secretory diarrhea, vomiting, abdominal pain and, in severe
cases, bleeding. The severity of aGVHD is classified in four grades on
the basis of the involvement of the organs mentioned above.
On the other hand, cGVHD manifestations are typically variable, and
many organs can be involved, frequently with autoimmune-like diseases
GVHD Pathogenesis and the Role of Gut Microbiota
mechanisms leading to GVHD are usually divided into steps: organ
damage, priming of the immune response, activation of T cells and
destruction of target organs by mean of the activated immune cells[2,57,59] (Figure 1).
The incidence of GVHD is positively correlated with the degree of human
leucocyte antigen (HLA) mismatch as the histocompatibility antigens are
the main proteins recognized by donor immune cells.
The connection between GVHD and microbiota was firstly suggested in
pioneering studies in mice.[61,62]
However, studies in humans are still scant and characterized by small
sample sizes. These studies mainly investigated variations in the
gastrointestinal microbiota before and after HSCT and the impact of its
composition on the transplant outcomes (Table
|Table 1. Summary of human studies assessing gastrointestinal microbiota in Graft versus Host Disease.|
Taur et al. demonstrated that there is a marked reduction after HSCT in the microbiota diversity which leads to the selection of a limited number or, even, of a single “dominating” bacterial genus. Interestingly, patients who developed intestinal domination showed an increased risk of bacteremia which was frequently caused by the same identified “dominating” bacteria. The authors also described the effects of different antibiotics on the development of specific bacterial prevalences: for example, fluoroquinolones reduced the risk of gram-negative bacteremia by decreasing proteobacterial domination.
Given these data and considering the already mentioned dramatic impact of GVHD on survival, it is not surprising that microbiota diversity was also found to be an independent risk factor for mortality in patients undergoing HSCT.
Consequent studies focused on the analysis of bacterial composition, researching if specific genera or species could be more implicated than others in the development of GVHD. For example, analysis of bacterial genera found that the abundance of a specific genus, namely Blautia (which belong to the Clostridia class), is associated with GVHD-related mortality. Although it was not possible to demonstrate causality in this study, these data may represent a starting point for the development of a GVHD mortality biomarker in the near future.
Other studies investigated variations of the microbiota in relation to the development of GVHD, the second most common cause of mortality in the context of allogeneic HSCT. In particular, the onset of GVHD seems to be associated with a progressive reduction of the microbiota diversity with a relative increase in Lactobacillales and a relative decrease in Clostridiales. Noteworthy, these findings are consistent with those in mice, suggesting that animal studies may, at least, guide the research in humans.
other authors reported that there is an increase after HSCT in the
relative abundance of enterococci that was persistent and more
pronounced in adult patients with active GVHD.
Similar results have been obtained in children by Biagi et al., who
analyzed fecal samples collected from 10 children before HSCT and three
times in the following 100 days. After HSCT, a profound alteration of
the gut ecosystem occurred in all children, with the loss of about 30%
in average of alpha diversity -a measure of diversity within a
population in terms of number and distribution- compared to pre-HSCT
samples. However, the last samples collected showed a minor degree of
difference compared to pre-HSCT specimens, suggesting a natural trend
to recover after the disturbance caused by the HSCT. The fecal amount
of short-chain fatty acids (SCFA) followed the variations of
microbiota: it decreased by 76% after HSCT, being propionate the most
reduced (mean loss 86%), and trend to recover distancing the HSCT.
Although these differences are common in patients with and without
aGVHD, the 5 children who developed aGVHD also showed an overgrowth of Enterococcus and Clostridiales and a corresponding
decrease of Faecalibacterium
and Ruminococcus. At phylum
level, patients with aGVHD showed a drop in Firmicutes
abundance after HSCT but, distancing the HSCT, they showed higher
abundance than the initial one, whereas they demonstrated a lower
abundance of Bacteroidetes
compared to non-aGVHD patients. Even if alterations of gut microbiota
induced by conditioning regimen and HSCT seem to be crucial to the
pathogenesis of GVHD, the pre-HSCT characteristics of gut microbiota
could also play a major role. In fact, children who developed aGVHD
showed lower diversity and richness before HSCT compared to the other
patients and, in particular, they demonstrated a lower abundance of Bacteroides and Parabacteroides, whose abundance
positively correlated with the concentration of propionate and SCFA.
Our group identified that the conditioning regimen, starting from the same baseline microbiota composition, promotes changes in the microbiome, which are different between Autologous (auto-) and Allogeneic Stem Cell Transplantation (allo-SCT). After auto-SCT we documented an increase of Proteobacteria (Klebsiella, Proteus, Acinetobacter, Haemophilus, Pseudomonas, Enterobacteriaceae) and a reduction of Bacteroidetes (Bacteroides, Saprospirae, Prevotella). After allo-SCT, instead, there was an increase of Bacteroidetes and a reduction of Firmicutes (Bacilli, Lactobacilli, Clostridium, Enterococci, Streptococci). Moreover, patients who developed GVHD harbored more Firmicutes and Proteobacteria and fewer Bacteroidetes than patients without this complication. In patients with gut GVHD, Proteobacteria were more represented than in patients with liver or skin involvement.
these studies showed that the intestinal microbiota is heavily affected
by HSCT, being the principal finding, reported in all studies, the
reduction in the overall bacterial diversity. At the same time, some
studies reported specific alterations which are interestingly
correlated with the development of the major complications of HSCT,
such as bacteremia and GVHD. While a causative role of the microbiota
in these conditions is yet to be demonstrated, these and future studies
may give a better comprehension of the complex mechanisms underlying
HSCT and GVHD, ultimately allowing better outcomes.
New Perspectives: the Role of Paneth Cells and Genetic Modifiers of Gut Microbiota
Recently, researchers focused on Paneth cells in an attempt to find a mechanistic relation between microbiota and GVHD. Paneth cells secrete antimicrobial peptides such as alpha-defensins which contribute to the regulation of the GI microbiota. During GVHD, Paneth cells appear to be damaged with a consequent reduction in alpha-defensins production. Noteworthy, alpha-defensins activity is directed mostly toward non-commensal bacteria, thus decreased levels of these peptides lead to a reduction of commensal bacteria and, intuitively, to an impairment in their beneficial effects.
A subsequent study investigated if Paneth cells number may correlate with the severity, response to treatment and survival of GVHD. Authors found that Paneth cells number was inversely correlated with the clinical severity stage with a strong correlation between the two parameters. Response to treatment at 4 weeks was also found to be positively correlated with Paneth cells number, being highest in patients with a complete response and lowest in patients who did not respond. Finally, a threshold of 4 Paneth cells per high power field (HPF) was found to discriminate between high and low-risk patients regarding non-relapse mortality (NRM), with also a significant difference in the overall survival.
Similarly, Ferrara et al. demonstrated that a specific lectin secreted by Paneth cells, namely regenerating islet-derived 3-alpha (REG3alpha), has diagnostic value in acute GI GVHD permitting to differentiate between GVHD-related diarrhea and other causes of diarrhea. The authors also demonstrated a prognostic value of REG3alpha in GVHD, in particular, a positive correlation between plasma levels and NRM was found. This result may appear in contrast with the previous data, in particular with the evidence supporting a protective role of Paneth cells. However, the authors hypothesized that the GI mucosal barrier disruption which occurs in GVHD permits to the nearby Paneth cells secretions to enter the bloodstream.
Similarly, there is an increasing interest in the role of the Fucosyltransferase 2 (FUT2) gene, a genetic modifier of the GI microbiota which seems to be associated with different GI diseases.
Various antigens are expressed in the intestinal mucin layer, for example, ABH antigens are oligosaccharides that constitute a site of attachment and a carbon source for intestinal bacteria. Their expression is regulated by an enzyme which in humans is encoded by the FUT2 gene. Polymorphisms in the FUT2 gene are correlated with alteration of the GI microbiota both in the compositional and functional level. Recently, homozygosity for the loss-of-function alleles (non-secretors, A/A genotype) was demonstrated to be associated with increased susceptibility to Crohn’s disease. Rayes et al. also showed that FUT2 polymorphisms influence the risk of GVHD and bacteremia in the context of HSCT. Specifically, the Authors found that there was a reduced risk of acute GVHD with A/A genotype (non-secretors) and an increased risk with the G/G genotype (secretors) while an increased risk for bacteremia was found with A/A and A/G (secretors) genotypes.
Gut Microbiota Modulation as a Preventive Strategy Against GVHD
